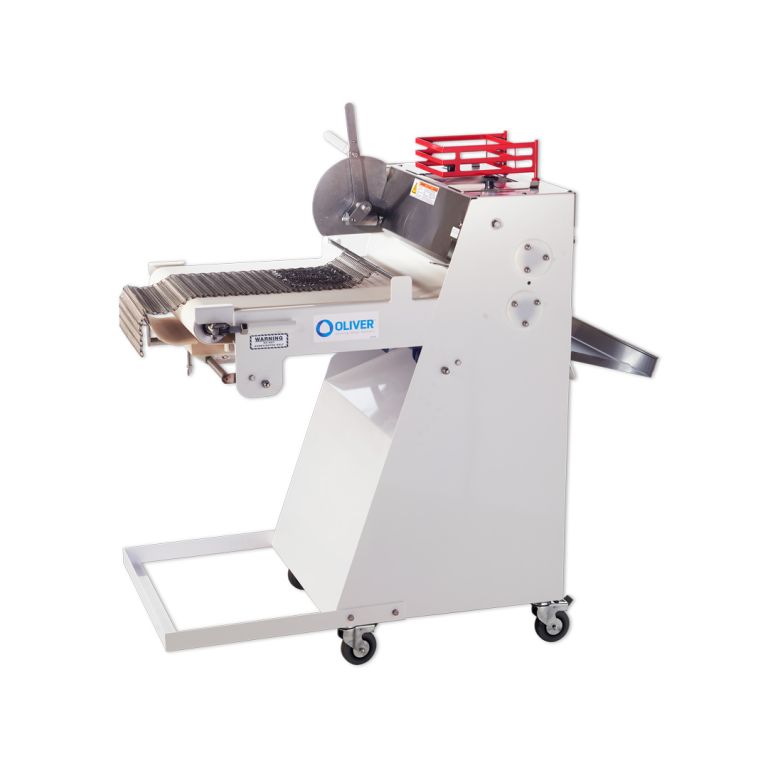

Bread and Roll Dough Moulder

Product Summary

#860L-D
Easily mould rolls and breads ranging from 0.5 oz. to 7 lbs. with one person

Product Details

Product Features

  • Spring-loaded rollers gently stretch the dough
  • Process up to 3,600 8-oz. pieces of dough per hour
  • 24″ W FDA-approved polyester belt
  • Use for:
    • Artisan breads & rolls
    • White, raisin & pan breads
    • Rye & whole grain breads
    • French bread & baguettes
    • Subs & hot dog buns
    • Hoagie & finger rolls
    • Challah & pretzels
    • Tapered rolls
    • Gluten-free products
  • Finished dough pieces from 0.5 oz. to 7 lbs.
  • Dough molder automatically powers down when the in-feed guard is removed
  • Master Series Control Panel included for easier processing of artisan bread dough
  • Fully-adjustable size guides
  • Variable speed
  • Pressure plate storage bar
  • 35″ Moulding Plate included (choose flat or adjustable with varying widths)
  • Moulding Plate Side Guides are included. Recommended use with flat Moulding Plates
  • Single person operation
  • 1-year warranty
  • UL certified in US and Canada
  • Made in USA

Product Benefits

  • Increase output, save time and conserve labor with automation
  • Dough is degassed, rolled, moulded, sealed and ready for the baking pan in seconds
  • Better yield and consistency for even baking
  • Variable speed efficiently processes both high- and low-hydration doughs
  • Eliminate the fatigue of hand rolling and moulding
  • Being simple to operate makes it easy to cross-train employees

Product Specifications

Model

860L-D

Capacity

0.5 oz. to 7 lbs.

Dimensions

53" L x 30" W x 53" H

Electrical

115 VAC, 5 amps, 60 Hz, 1 phase
3/4 H.P.
208* VAC, 5 amps, 60 Hz, 1 phase
3/4 H.P.

GFCI circuits require a 208V* for optimal machine performance. If you are uncertain if your facility has GFCI, please consult with your electrician prior to placing machine order. Machines wired for 115V are not compatible with GFCI circuits.

*Machine also compatible for 230V with one-step setting change. Contact Oliver Parts and Service for instructions on how to change the setting.

Weight

Machine Weight: 515 lbs.
Shipping Weight: 735 lbs.

Options

Adjustable Moulding Plates: 12", 14", 16", 18" or 20" W x 35" L
Flat Moulding Plates: 3.5", 4.25", 5.25", 6", 6.5", 7", 8", 9.25", 10" or 10.5" W x 35" L

Warranty

1-year warranty
